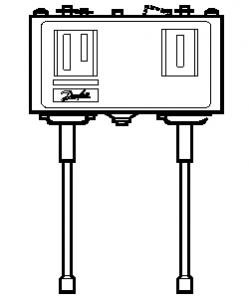

CÔNG TẮC ÁP LỰC 060-5251 KPU16W

Mã sản phẩm: 060-5251
Thương hiệu: Danfoss
Giá bán: 500.000 đ
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: bansibientan@yahoo.com.vn

KPU pressure control, failsafe (double bellows)

Type KPU16W Code no.  060-5251


KPU pressure controls are for use on commercial refrigeration and air conditioning systems to give protection against excessively low suction pressure or excessively high discharge pressure.
They are also used for starting and stopping refrigeration compressors and fans on air-cooled condensers.

KPU pressure controls are fitted with the Single-Pole Single-Throw (SPST) or Single-Pole Double-Throw (SPDT) switches, suitable for direct as well as indirect (with a contactor) control. KPU pressure controls are available in several pressure ranges and are compatible with non-aggressive, fluorinated refrigerants.
Standard enclosure is NEMA1.



Characteristic

Value

Type KPU16W
Weight 0.862 Kg
Ambient temperature [°C] -40 - 50 °C
Ambient temperature [°F] -40 - 122 °F
Ambient temperature range [°C] -40 - 50 °C
Ambient temperature range [°F] -40 - 122 °F
Approval c UL us UL873, CS C22.2, CE, PED
Contact function SPDT+SPST(NO)
Contact rating 144 A, 240 V ac
Contact rating 24 A, 240 V ac
Contact rating DC=12 W pilot duty
Contact rating FLA=24 A, 120 V ac
Contact rating LRA = 144 A, 120 V ac
Differential left side [bar] 0,70 - 4,00 bar
Differential left side [psi] 10,0 - 60,0 psi
Differential right side [bar] 4,0 bar
Differential right side [psi] 60,0 psi
EAN number 5702428063876
Electrical connection size 7/8 in
Enclosure rating IP30
Max. Working Pressure, left side [bar] Pe 17,0 bar
Max. Working Pressure, left side [psig] Pe 250 Psig
Max. Working Pressure, right side [bar] Pe 46,5 bar
Max. Working Pressure, right side [psig] Pe 675,0 psig
Nema Rating 1
Pack format Multi pack
Pressure connection Flare 1/4
Pressure Male/Female Male
Product description Dual Pressure Control
Quantity per pack format 14 pc
Refrigerant(s) HCFC
Refrigerant(s) Non flam HFC
Regulation left side [bar]Pe -0,20 - 7,50 bar
Regulation left side range Pe 6 inHg - 108 psig
Regulation right side [bar] Pe 8,0 - 42,0 bar
Regulation right side [psig] Pe 100,0 - 600,0 psig
Reset function, left side Auto
Reset function, right side Auto



Code no.

Type

Press. conn.

Reg. left [bar] Pe

Reg. right [bar] Pe

Diff. left side [psi]

Diff. right side [psi]

Contact function

Reset left

Reset right

Encl.

060-5243

KPU6W

Flare 1/4

-

-

-

-

SPDT

-

-

IP30

060-5244

KPU6B

Flare 1/4

-

-

-

-

SPDT

-

-

IP30

060-5245

KPU6W

Flare nut 1/4

-

-

-

-

SPDT

-

-

IP30

060-5246

KPU6B

Flare nut 1/4

-

-

-

-

SPDT

-

-

IP30

060-5251

KPU16W

Flare 1/4

-0,20 - 7,50 bar

8,0 - 42,0 bar

10,0 - 60,0 psi

60,0 psi

SPDT+SPST(NO)

Auto

Auto

IP30

060-5252

KPU16W

Flare nut 1/4

-0,20 - 7,50 bar

8,0 - 42,0 bar

10,0 - 60,0 psi

60,0 psi

SPDT+SPST(NO)

Auto

Auto

IP30

060-5253

KPU16B

Flare 1/4

-0,20 - 7,50 bar

8,0 - 42,0 bar

10,0 - 60,0 psi

60,0 psi

SPDT+SPST(NO)

Min convertible

Max convertible

IP30

060-5254

KPU16B

Flare nut 1/4

-0,20 - 7,50 bar

8,0 - 42,0 bar

10,0 - 60,0 psi

60,0 psi

SPDT+SPST(NO)

Min convertible

Max convertible

IP30

060-5603

KPU6B

Flare 1/4

-

-

-

-

SPDT

-

-

IP30



Type  KPU6W  KPU6B  KPU6W  KPU6B  KPU16W  KPU16W  KPU16B  KPU16B  KPU6B

Code no.  060-5243  060-5244  060-5245  060-5246  060-5251  060-5252  060-5253  060-5254  060-5603

Type  KPU6W  KPU6B  KPU6W  KPU6B  KPU16W  KPU16W  KPU16B  KPU16B  KPU6B

Code no.  060-5243  060-5244  060-5245  060-5246  060-5251  060-5252  060-5253  060-5254  060-5603
