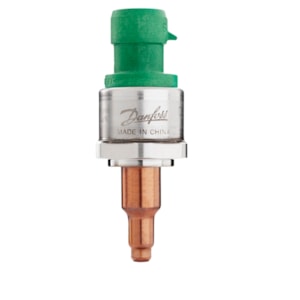

CẢM BIẾN ÁP SUẤT DANFOSS DST P110, 0 - 15 bar, 0 - 217.5 psi - C/N 075G4107

Gross weight

0.072 Kilogram

Net weight

0.057 Kilogram

Volume

0.175 Liter

EAN

5702424587062

Type

DST P110

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin C

+ supply

Pin B

- common

Pin A

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

135 °C

Compensated temp. range [°C] [min]

-40 °C

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Round Packard Metri-Pack

Electrical connection size

3 pin

Electrical connection standard

150.2 SERIES

Electrical Connector Color

Green

Enclosure rating IP

IP69K

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Fault signal level

2

High Clipping Level

99

Housing material

304L

Identical product

075G1131

In scope of WEEE

Yes

International Article Number

5702424587062

Low Clipping level

4

Medium temperature range [°C] [max]

135 °C

Medium temperature range [°C] [min]

-40 °C

Output signal

Ratio metric

Overload pressure max. [bar]

60 bar

Overload pressure max. [psi]

870 psi

Packing format

Industrial pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

Solder tube

Pressure connection standard

For solder tube

Pressure connection type

Solder, ODM

Pressure Male/Female

Male

Pressure range [bar] [max]

15 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

217.5 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

55 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

No

Response time max. [ms]

2 ms

Specification key

DST P110-2136-LBEB07-0

Supply voltage [V] DC

5 V

TEB inside CTR ±FS [%]

3 %

UL evaluated

Yes

Wetted part material

304L/316L
