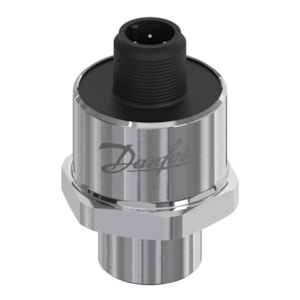

CẢM BIẾN ÁP SUẤT DANFOSS DST P110, 0 - 30 bar, 0 - 435 psi - C/N 075G4069

Gross weight

0.071 Kilogram

Net weight

0.058 Kilogram

EAN

5702424589585

Type

DST P110

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- common

Pin 3

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

-40 °C

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Electrical Connector Color

Black

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Fault signal level

21.5

High Clipping Level

20

Housing material

304L

Identical product

075G1092

In scope of WEEE

Yes

International Article Number

5702424589585

Low Clipping level

4

Medium temperature range [°C] [max]

100 °C

Medium temperature range [°C] [min]

-40 °C

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

120 bar

Overload pressure max. [psi]

1740 psi

Packing format

Industrial pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

7/16-20

Pressure connection standard

SAE J513 45° flare

Pressure connection type

UNF

Pressure Male/Female

Female

Pressure range [bar] [max]

30 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

435 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

60 pc

REACH Candidate List substances

No

Response time max. [ms]

2 ms

Specification key

DST P110-C831-A5BF08-0

TEB inside CTR ±FS [%]

2 %

UL evaluated

Yes

Wetted part material

304L/316L
