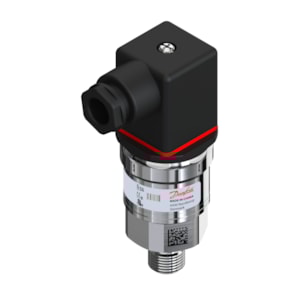

CẢM BIẾN ÁP SUẤT DANFOSS AKS 33, -1 - 5 bar, -14.5 - 72.5 psi - C/N 060G7784

Gross weight

0.194 Kilogram

Net weight

0.124 Kilogram

Volume

0.408 Liter

EAN

5715255109372

Type

AKS 33

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- supply

Pin 2

Accuracy, max. [±FS%]

0.8 %

Accuracy, typical [±FS%]

0.3 %

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX; C UL US UL Recognized; CE; GOST POCC

Approval comments

ATEX Ex ec IIA T4 Gc

Approval standard

6967179; E227388; E31024

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

40 °C

Compensated temp. range [°C] [min]

-30 °C

Compensated temp. range [°F] [max]

104 °F

Compensated temp. range [°F] [min]

-22 °F

Contains batteries

No

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5715255109372

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

36 bar

Overload pressure max. [psi]

522 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

5 bar

Pressure range [bar] [min]

-1 bar

Pressure range [psi] [max]

72.5 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

14 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

5d3ddba9-4ab7-49e8-8c1e-73e8e21d0b89

SCIP dossier product name

Sensor AKS 33

Specification key

AKS 33-8731-A1GB04-1

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL evaluated

Yes
