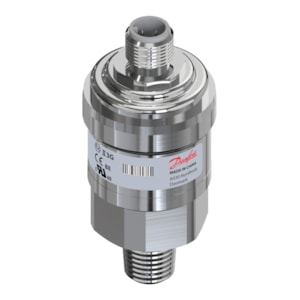

CẢM BIẾN ÁP SUẤT DANFOSS AKS 33, 0 - 138 bar, 0 - 2000 psi - C/N 060G7739

Gross weight

0.154 Kilogram

Net weight

0.137 Kilogram

Volume

0.253 Liter

EAN

5715162918784

Type

AKS 33

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- supply

Pin 3

Accuracy, max. [±FS%]

0.8 %

Accuracy, typical [±FS%]

0.3 %

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE; C UL US UL Recognized

Autofrettage Pressure

500 bar

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

Electrical conn. Male/Female

Male

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5715162918784

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [psi]

12000 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4-18

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [max]

138 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

2000 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

Yes

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

5d3ddba9-4ab7-49e8-8c1e-73e8e21d0b89

SCIP dossier product name

Sensor AKS 33

Specification key

AKS 33 7431-C1AC04-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL evaluated

Yes
