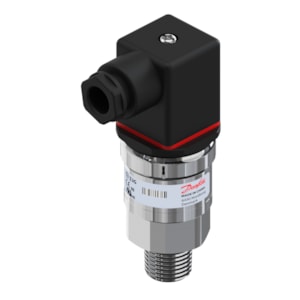

CẢM BIẾN ÁP SUẤT DANFOSS AKS 33, 0 - 16 bar, 0- 232 psi - C/N 060G6419

Gross weight

0.217 Kilogram

Net weight

0.167 Kilogram

Volume

0.411 Liter

EAN

5702428909808

Type

AKS 33

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

0.8 %

Accuracy, typical [±FS%]

0.3 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX; GOST POCC; CE; C UL US UL Recognized

Approval comments

ATEX Ex ec IIA T4 Gc

Approval standard

6967179; E227388; E31024

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

40 °C

Compensated temp. range [°C] [min]

-30 °C

Compensated temp. range [°F] [max]

104 °F

Compensated temp. range [°F] [min]

-22 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5702428909808

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

96 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

3/8

Pressure connection standard

ISO 7-1

Pressure connection type

R

Pressure Male/Female

Male

Pressure range [bar] [max]

16 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

232 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Absolute

Pulse-snubber

No

Quantity per packing format

14 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

5d3ddba9-4ab7-49e8-8c1e-73e8e21d0b89

SCIP dossier product name

Sensor AKS 33

Specification key

AKS 33-2221-A1PT05-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL evaluated

Yes
