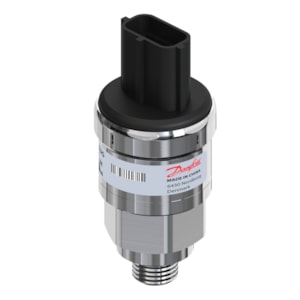

CẢM BIẾN ÁP SUẤT DANFOSS AKS 32R, 0 - 34.48 bar, 0 - 500 psi - C/N 060G7783

Gross weight

0.136 Kilogram

Net weight

0.124 Kilogram

Volume

0.255 Liter

EAN

5715255097778

Type

AKS 32R

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 3

+ supply

Pin 1

- common

Pin 2

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-22 °F

Approval

C UL US UL Recognized; CE; GOST POCC

Approval standard

6967179; E227388; E31024

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

Electrical conn. comments

Integrated

Electrical conn. Male/Female

Male

Electrical connection

AMP Econoseal, J-series

Electrical connection size

3 pin

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

99

International Article Number

5715255097778

Intrinsically safe

No

Low Clipping level

4

Medium temperature range [°C] [max]

130 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

266 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Ratio metric

Overload pressure max. [psi]

797 psi

Packing format

Multi pack

Pressure connection size

1/2-20

Pressure connection standard

ASME B1.1

Pressure connection type

UNF

Pressure Male/Female

Male

Pressure range [bar] [max]

34.48 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

500 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

20 pc

Ratiometric [V] [max]

4.5 V

Ratiometric [V] [min]

0.5 V

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

AKS 32R-6636-G1BD15-0

Supply voltage [V] DC

5 V

UL evaluated

Yes
