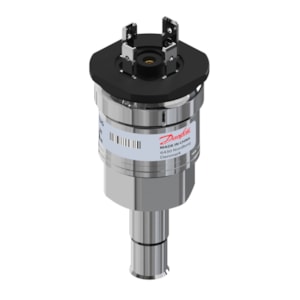

CẢM BIẾN ÁP SUẤT DANFOSS AKS 32R, -1 - 34 bar, -14.5 - 493 psi - C/N 060G4508

Gross weight

0.128 Kilogram

Net weight

0.116 Kilogram

Volume

0.246 Liter

EAN

5702423259144

Type

AKS 32R

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 3

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

0.8 %

Accuracy, typical [±FS%]

0.3 %

Adj. zero point and span

No

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX; C UL US UL Recognized; CE; GOST POCC

Approval comments

ATEX Ex ec IIA T4 Gc

Approval standard

6967179; E227388; E31024

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

Angular connector

Electrical connection size

4 pin

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

98

Identical product

060G3552

In scope of WEEE

Yes

International Article Number

5702423259144

Intrinsically safe

No

Low Clipping level

4

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Ratio metric

Overload pressure max. [bar]

55 bar

Packing format

Industrial pack

Pressure connection size

3/8

Pressure connection standard

NONE

Pressure connection type

Solder, ODF

Pressure Male/Female

Male

Pressure range [bar] [max]

34 bar

Pressure range [bar] [min]

-1 bar

Pressure range [psi] [max]

493 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

28 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

AKS 32R-DG36-A0EB08-0

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

4.5 V

UL evaluated

Yes
