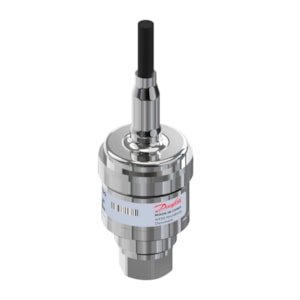

CẢM BIẾN ÁP SUẤT DANFOSS AKS 32, 0 - 41.37 bar, 0 - 600 psi - C/N 060G7793

Gross weight

0.328 Kilogram

Net weight

0.258 Kilogram

Volume

1.281 Liter

EAN

5715255133490

Type

AKS 32

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Brown

+ supply

Red

- common

Black

Accuracy, max. [±FS%]

0.8 %

Accuracy, typical [±FS%]

0.3 %

Ambient temperature range [°C] [max]

80 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

176 °F

Ambient temperature range [°F] [min]

-22 °F

Approval comments

ATEX Ex ec IIA T4 Gc

Cable length [in]

108 in

Cable length [m]

2.744 m

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

Electrical conn. comments

screen

Electrical conn. Male/Female

Male

Electrical connection

Cable

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

High Clipping Level

11.5

In scope of WEEE

Yes

International Article Number

5715255133490

Intrinsically safe

No

Low Clipping level

0

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Voltage

Output signal [V] [max]

10 V

Output signal [V] [min]

0 V

Overload pressure max. [bar]

60 bar

Overload pressure max. [psi]

870 psi

Packing format

Multi pack

Pressure connection HEX [mm]

17 mm

Pressure connection notes

Flare 1/4 in w/ valvedepressor

Pressure connection size

7/16-20

Pressure connection standard

ISO 8434-1

Pressure connection type

UNF

Pressure Male/Female

Female

Pressure range [bar] [max]

41.37 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

600 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Absolute

Pulse-snubber

No

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

AKS 32-CH35-H2BF08-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

15 V

UL evaluated

Yes
