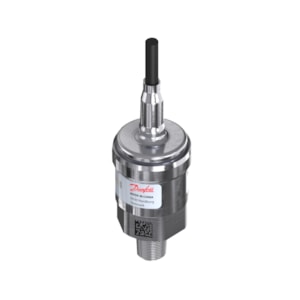

CẢM BIẾN ÁP SUẤT DANFOSS AKS 32, 0 - 34.5 bar, 0 - 500 psi - C/N 060G1890

Gross weight

0.604 Kilogram

Net weight

0.512 Kilogram

Volume

2.347 Liter

EAN

5702423205431

Type

AKS 32

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

White

+ supply

Red

- common

Black

Accuracy, max. [±FS%]

0.8 %

Accuracy, typical [±FS%]

0.3 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval comments

ATEX Ex ec IIA T4 Gc

Approval standard

6967179; E227388; E31024

Cable length [in]

315 in

Cable length [m]

8 m

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. comments

Screened

Electrical connection

Cable

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

6.75

In scope of WEEE

Yes

International Article Number

5702423205431

Intrinsically safe

No

Low Clipping level

0.1

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Voltage

Output signal [V] [max]

6 V

Output signal [V] [min]

1 V

Overload pressure max. [psi]

800 psi

Packing format

Multi pack

Pressure connection size

1/8-27

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [max]

34.5 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

500 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

AKS 32-6634-B1AC02-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL evaluated

Yes
