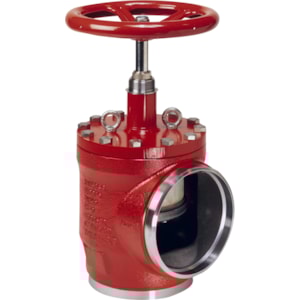

VAN CHẶN GÓC DANFOSS SVA-DL 250 - C/N 148B3761

Gross weight

146.5 Kilogram

Net weight

122.17 Kilogram

Volume

595.2 Liter

EAN

5702428179270

Type

SVA-DL 250

Product group

Shut-off and regulating valves

Product Name Description

Shut-off valve

Approval

CE; LLC CDC EURO-TYSK

CE evaluated

Yes

China RoHS compliance

Out of scope

Colour Paint

Reddish brown

Connection standard

EN 10220

Contains batteries

No

Cv value [gal/min]

1867.6 gal/min

Direction

Angleway

Equipment

Handwheel

EU RoHS compliance

Yes with exemptions

Fluid Group

1; 2

Inlet connection size [in]

10 in

Inlet connection size [mm]

250 mm

Inlet connection type

Butt weld

Kv value [m³/h]

1610 m³/h

Max. Working Pressure [bar]

40 bar

Max. Working Pressure [psig]

580 psig

Outlet connection size [in]

10 in

Outlet connection size [mm]

250 mm

Outlet connection type

Butt weld

Packing format

Single pack

PED category

III

Product description

Stop valve

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R113
R114
R1233zd(E)
R1234yf
R1234ze(E)
R125
R1270
R1336mzz(Z)
R134a
R152a
R170
R22
R227ea
R23
R236fa
R290
R32
R401A
R402A
R402B
R404A
R407A
R407B
R407C
R407F
R407H
R408A
R409A
R410A
R417A
R421A
R422A
R422B
R422D
R427A
R438A
R444B
R447A
R448A
R449A
R449B
R450A
R452A
R454B
R455A
R502
R503
R513A
R600
R600a
R717
R744
RE170
R507A
R1150
R245fa
R413A
R442A
R447B
R452B
R454A
R454C
R463A
R512A
R513B
R515A
R515B
R516A
R508B

SCIP dossier no.

b095c3f5-98c7-41bb-8596-f3bb1f50ef02

SCIP dossier product name

SVA

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-76 °F

Valve version

Delta Pressure Low
