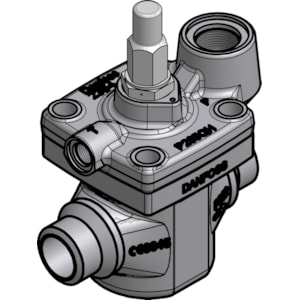

VAN DANFOSS ICS1 25-10, 25 mm - C/N 027H2031

Gross weight

3.772 Kilogram

Net weight

3.519 Kilogram

Volume

8.68 Liter

EAN

5702428236928

Type

ICS1 25-10

Product group

Press. and temp. regul. valves

Product Name Description

Pilot operated servo valve

Approval

EAC; LLC CDC EURO-TYSK; UL

Body material

Steel

Brand

ICV Flexline

China RoHS compliance

Out of scope

Connection material

Steel

Connection standard

ASME B 36.10M SCHEDULE 80

Contains batteries

No

Cv value [gal/min]

4.1 gal/min

Direction

Straightway

EU RoHS compliance

Out of scope

Ext pilot pressure connection

Weld nipple (P2 Port)

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Inlet connection size [in]

1 in

Inlet connection size [mm]

25 mm

Inlet connection type

Butt weld

Kv value [m³/h]

3.5 m³/h

Manual operation option

Manual open spindle

Max. Working Pressure [bar]

65 bar

Max. Working Pressure [psig]

943 psig

Opening configuration

Closed (delta p=0 bar); Full open (delta p≥0.2 bar); PropOpen (delta p=0.07-0.2bar)

Outlet connection size [in]

1 in

Outlet connection size [mm]

25 mm

Outlet connection type

Butt weld

Packing format

Single pack

Parts Program name

ICS

PED category

Art. 3, par. 3

Pressure gauge connection

Int. thread with blind plug

Product accessories

ICM / ICS / ICLX accessories

Product description

Servo operated valve

Quantity per packing format

1 pc

REACH Candidate List substances

No

Refrigerants

R134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R717
R744
R1234ze(E)
R507A
R1234yf
R125
R152a
R227ea
R236fa
R245fa
R290
R32
R407H
R413A
R417A
R422A
R422B
R422D
R438A
R442A
R444B
R447A
R447B
R448A
R449A
R449B
R450A
R452A
R452B
R454A
R454B
R454C
R455A
R463A
R512A
R513A
R513B
R515A
R515B
R516A
R170
R452C
R600
R600a

Serviceable

ICM / ICS / ICLX spare parts

Surface coating

Zn (TLP)

Temperature range [°C] [max]

120 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

248 °F

Temperature range [°F] [min]

-76 °F

Top cover

1 function module

UL approval file name

REFRIGERANT VALVE 53R0

UL evaluated

Yes

Valve operation

Pilot operated

Valve version

Standard version
