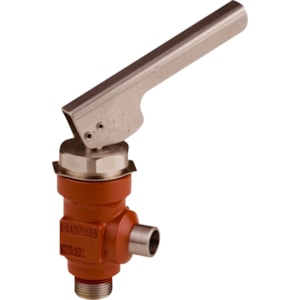

VAN XẢ DẦU ĐÓNG NHANH DANFOSS QDV 15 - C/N 148H3273

Mã sản phẩm: 148H3273

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN XẢ DẦU ĐÓNG NHANH DANFOSS QDV 15 - C/N 148H3273

Product details

Gross weight	1.688 Kilogram
Net weight	1.35 Kilogram
Volume	5.899 Liter
EAN	5702428173643
Type	QDV 15
Product group	Shut-off and regulating valves
Product Name Description	Quick closing oil drain valve

Approval	EAC; LLC CDC TYSK
Body material	Steel
China RoHS compliance	Out of scope
Colour Paint	Reddish brown
Connection material	Steel
Connection standard	ANSI/ASME B1.20.1
Contains batteries	No
Direction	Angleway
EU RoHS compliance	Yes with exemptions
Flow direction indicator	Embossed 1-way arrow
Fluid Group	1; 2
Further information	Back pressure dependent
Inlet connection size [in]	1/2
Inlet connection type	NPT
Inlet Internal/External	Internal
Max. Working Pressure [bar]	40 bar
Max. Working Pressure [psig]	580 psig
Outlet connection size [in]	1/2
Outlet connection type	NPT
Outlet Internal/External	Internal
Packing format	Single pack
PED category	Art. 4, par. 3
Product accessories	QDV accessories
Product description	Quick Drain Valve
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R717
Relief delta p [bar]	16 bar
Relief delta p [psig]	232 psig
Serviceable	QDV spare parts
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-58 °F
