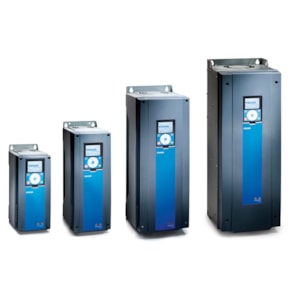

BIẾN TẦN DANFOSS VACON0100-3L-0012-5-FLOW - C/N 135N4521
Frequency converter
VACON0100-3L-0012-5-FLOW
VACON 100 FLOW
380-500 Vac, 12 Amp, IP21/NEMA1
Graphical Keypad MK01
C2 Commercial&Industry Environ
B Slot: F3,3 Relay board
C Slot: No board
D Slot: No board
E Slot: No board
Fieldbus: Std protocol,Modbus,N2,BacNet
Manual: English
Frame 04
Other options according to Model code
Model code:VACON0100-3L-0012-5-FLOW
VACON® 100 AC drives are ideal for saving energy, optimizing process control and improving productivity. They are designed for multi-purpose use while remaining easy to install, easy to commissi
Product details
|
Gross weight |
7 Kilogram |
||
|
Net weight |
6 Kilogram |
||
|
EAN |
5710108207144 |
|
Product View (Switch) |
GLBL |
Global (Standard) |
|
|
Segment |
-FLOW |
VACON 100 FLOW |
|
|
Region Code |
-R00 |
R00 International |
|
|
Mains voltage |
-5 |
380-500 Vac |
|
|
Current rating |
-0012 |
12 Amp |
|
|
Installation options |
-DM |
DM Drive Module |
|
|
Enclosure |
+IP21 |
IP21/NEMA1 |
|
|
Control panel |
+HMGR |
Graphical Keypad MK01 |
|
|
EMC emission limit category |
+EMC2 |
C2 Commercial&Industry Environ |
|
|
Common mode filter (for DM) |
+P000 |
No Option |
|
|
DUT filter (for DM) |
+P000 |
No Option |
|
|
Brake chopper |
+DBNO |
No dynamic braking device |
|
|
Real time clock option |
+SRNO |
No Battery for real time clock |
|
|
Configurable power range |
NONE |
None |
|
|
Power connections |
+P000 |
No Power options (+P000) |
|
|
Cable entry |
+QGLM |
Metric conduit plate |
|
|
Additional Equipment B |
+Q000 |
No option for Qxxx_B (+Q000) |
|
|
Additonal Equipment C |
+Q000 |
No additonal option for Qxxx_C |
|
|
Shipping package |
+GSCB |
Cardboard Box as Shipping pack |
|
|
Marine construction |
+E000 |
no option |
|
|
B-Slot Option Board |
+SBF3 |
F3,3 Relay board |
|
|
C- Slot Option Board |
+SC00 |
No board |
|
|
D-Slot Option Board |
+SD00 |
No board |
|
|
E-Slot Option Board |
+SE00 |
No board |
|
|
Internal FB selection |
+FBM1 |
Std protocol,Modbus,N2,BacNet |
|
|
Documentation level |
+DQCK |
Quick Guide |
|
|
Document language preference |
+DLUK |
English |
|
|
Firmware Language Pack |
+FL01 |
UK, DE, FI, SE, IT, FR lang |
|
|
Application |
+A0000 |
No Application |
|
|
Parameter Set |
+L0000 |
No application parameter set |
|
|
Motor parameter default freq |
+LS50 |
50 Hz def motor freq settings |
|
|
Unit for measure for display |
+LSSI |
Metric Units of Measure |
|
|
Labeling options |
+LPC1 |
no additional labels |
|
|
UL approval |
+GAUL |
UL Approval (+GAUL) |
|
|
Marine approval |
NONE |
None |
|
|
RCM Approval |
+GACT |
RCM Approval N16307 |
|
|
KC approval |
+GAKC |
KC Approval |
|
|
Ukrainian approval |
+GAUA |
Ukrainian Approval |
|
|
EAC Approval |
+GAEA |
EAC Approval |
|
|
Auxilary power supply |
+C000 |
no option |
|
|
DC power supply for aux device |
+C000 |
no option |
|
|
AC socket for aux devices |
+C000 |
no option |
|
|
Input Devices |
NONE |
none_ |
|
|
Common mode filter (for ED) |
+P000 |
no option |
|
|
DU/DT, Sine filter (for ED) |
+P000 |
no option |
|
|
Terminal Options |
NONE |
none_ |
|
|
Door Equipments |
+C000 |
no option |
|
|
Cabinet heater |
+C000 |
no option |
|
|
Cabinet light |
+C000 |
no option |
|
|
Motor heater control |
+C000 |
no option |
|
|
Emergency stop options |
+C000 |
no option |
|
|
Insulation fault sensor |
+C000 |
no option |
|
|
Cabling from top |
+C000 |
no option |
|
|
Back channel cooling |
+C000 |
no option |
|
|
Cabinet Plinth |
NONE |
None |
|
|
Empty extension segment |
NONE |
None |
|
|
Standardized cabinet solution |
NONE |
None |
|
|
Engineered cabinet solution |
NONE |
None |
|
|
Product Group |
VACON |
VACON |
|
|
Product Series |
0100 |
Vacon 100 series |
|
|
Phase |
-3L |
3 Phase AC Input |
|
|
Customized |
+BM2H |
Vacon 100-FLOW |
|
|
Main Circuit |
+M000 |
NONE |
|
|
Firmware |
+F0159 |
Vacon0100-Flow Software pack |
|
|
Max output frequency |
NONE |
None |
|
|
Terminal Box |
+T000 |
NONE |
|
|
Bypass Control Operation Mode |
NONE |
none_ |
|
|
Bypass Input Type |
NONE |
none_ |
|
|
Bypass power connection type |
NONE |
none_ |
|
|
CE approval |
+GACE |
CE Approval (+GACE) |
|
|
ATEX Approval |
NONE |
None |
|
|
County Specific Approval |
NONE |
None |
|
|
Warrenty time |
+WT01 |
Warranty 12/18 months (+WT01) |
|
|
Frame Size |
MR04 |
Frame 04 |
|
|
Product Catalog |
NO_VIEW |
NO VIEW |
|
|
Modelcode01 |
VACON0100-3L-0012-5 |
||
|
Modelcode02 |
-FLOW |
||
|
Calculated Net Weight [kg] |
6 |
||
|
Calculated Gross Weight [kg] |
7 |
||
|
Motor Power Low Overload [kW] |
5.5 |
5.5 |
|
|
Dimensions WxHxD [mm] net |
128 X 328 X 190 |
128 X 328 X 190 |
|
|
Dimensions WxHxD [mm] Gross |
175 X 384 X 232 |
175 X 384 X 232 |
|
|
Dimensions WxHxD [mm] |
128X328X190 |
128X328X190 |
|
|
Continuous Current (NO) [A] |
12 |
12 |
|
|
Motor Power HP Low Overload |
7,5 |
7,5 |
|
|
Typecode Part 1 |
70-AB3L00125W04B220BM2H |
||
|
Typecode Part 2 |
-00048698 |
||
|
Stockcode part 1 |
70-AB3L00125W04B220BM2H |
||
|
Stockcode part 2 |
-00048698 |
||
|
check if complete |
OK |
OK |
|
|
Vendor |
ERR01 |
Cannot Determine Vendor |
|
|
Recommended Factory |
ERR01 |
Cannot Determine Vendor |
|
|
Help Counter |
5 |
||
|
Help Counter |
2 |
||
|
Calculated Net Weight |
6 |
||
|
Sub family identification |
NONE |
Normal customer ordered |
|
|
Recommended Plant |
ERR01 |
ERR01 |
|
|
ECCN US |
3A999.a |
3A999.a |
|
|
ECCN EU |
Y901 |
Y901 |
