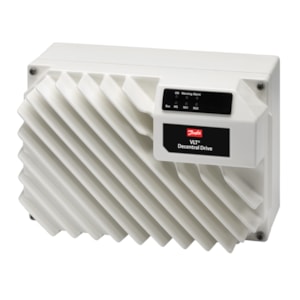

BIẾN TẦN DANFOSS FCD302 3.0KW - C/N 134F2385

Mã sản phẩm: 134F2385
Thương hiệu: Danfoss
Giá thị trường: 1 đ
Tiết kiệm: 0 đ (0%)
Giá bán: 1 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

BIẾN TẦN DANFOSS FCD302 3.0KW - C/N 134F2385

Máy biến tần Danfoss FCD302P3K0T4W66H1X3XMFCFXXXXA0BXXXXXXDX, 3 KW, 3Pha, 380-480VAC

FCD302P3K0T4W66H1X3XMFCFXXXXA0BXXXXXXDX
VLT® Decentral Drive FCD 302
3.0 kW / 4.0 HP, 380-480VAC (Three phased), Standard White IP66/NEMA4X,
RFI Class A1/C2, No brake, Compl. large stand alone, No brackets,
Metric threads, Service switch motor side, With display connector

Model code:FCD302P3K0T4W66H1X3XMFCFXXXXA0BXXXXXXDX

The VLT® Decentral Drive FCD 302 is a complete drive designed for decentral mounting. It can be mounted on the machine/wall - close to the motor - or directly on the motor. The decentral design redu

Product details

Gross weight



13.369 Kilogram



Net weight



13.3 Kilogram



Volume



39.938 Liter



EAN



5710107421343





Product View (Switch)

GLBL

Global (Standard)



Product Group

FCD

VLT® DecentralDrive FCD



VLT Series

302

302



Power Rating

P3K0

3.0 kW / 4.0 HP



Mains Voltage

T4

380-480VAC (Three phased)



Enclosure

W66

Standard White IP66/NEMA4X



RFI Filter

H1

RFI Class A1/C2



Brake

X

No brake



Hardware Configuration

3

Compl. large stand alone



Brackets

X

No brackets



Threads

M

Metric threads



Switch Option

F

Service switch motor side



Display

C

With display connector



Sensor Plugs

F

Direct mount 6xM12



Motor Plug

X

No motor plug



Mains Plug

X

No mains plug



Fieldbus Plug

X

No fieldbus plug



Reserved

X

Reserved



A Option

A0

Profibus DP



B Option

BX

No B option



Reserved for SW

XXXXX

Reserved for SW



D Option

DX

No option



FCD302 Frame Size

MF2

(MF2) MF2



Typecode Part 1



FCD302P3K0T4W66H1X3XMFCFXXXX



Typecode Part 2



A0BXXXXXXDX



Product Catalog

NO_VIEW

NO VIEW



ECCN EU

Y901

Y901



ECCN US

3A999.a

3A999.a



Calculated Gross Weight [kg]



14.2



Calculated Net Weight [kg]



13.9



Vendor

ERR01

Cannot Determine Vendor



Recommended Factory

ERR01

Cannot Determine Vendor



Modelcode01



FCD302P3K0T4W66H1X3XMFCFXXXX



Modelcode02



A0BXXXXXXDX



Recommended Plant

ERR01

ERR01
