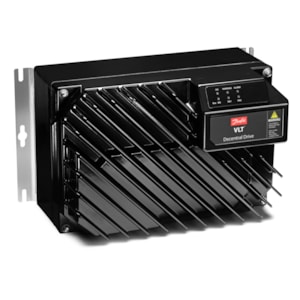

BIẾN TẦN DANFOSS FCD302 2.2KW - C/N 135X5319

Mã sản phẩm: 135X5319
Thương hiệu: Danfoss
Giá thị trường: 1 đ
Tiết kiệm: 0 đ (0%)
Giá bán: 1 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

BIẾN TẦN DANFOSS FCD302 2.2KW - C/N 135X5319

Máy biến tần Danfoss FCD302P2K2T4B66H1X1XMFCFXXXXA0BXXXXXXDX, 2.2 KW, 3Pha, 380-480VAC

FCD302P2K2T4B66H1X1XMFCFXXXXA0BXXXXXXDX
VLT® Decentral Drive FCD 302
2.2 kW / 3.0 HP, 380-480VAC (Three phased), Standard Black IP66/NEMA4X,
RFI Class A1/C2, No brake, Compl. small stand alone, No brackets,
Metric threads, Service switch motor side, With display connector

Model code:FCD302P2K2T4B66H1X1XMFCFXXXXA0BXXXXXXDX

The VLT® Decentral Drive FCD 302 is a complete drive designed for decentral mounting. It can be mounted on the machine/wall - close to the motor - or directly on the motor. The decentral design redu

Product details

Gross weight



10.1 Kilogram



Net weight



9.8 Kilogram



Volume



39.938 Liter



EAN



5710108415945





Product View (Switch)

GLBL

Global (Standard)



Product Group

FCD

VLT® DecentralDrive FCD



VLT Series

302

302



Power Rating

P2K2

2.2 kW / 3.0 HP



Mains Voltage

T4

380-480VAC (Three phased)



Enclosure

B66

Standard Black IP66/NEMA4X



RFI Filter

H1

RFI Class A1/C2



Brake

X

No brake



Hardware Configuration

1

Compl. small stand alone



Brackets

X

No brackets



Threads

M

Metric threads



Switch Option

F

Service switch motor side



Display

C

With display connector



Sensor Plugs

F

Direct mount 6xM12



Motor Plug

X

No motor plug



Mains Plug

X

No mains plug



Fieldbus Plug

X

No fieldbus plug



Reserved

X

Reserved



A Option

A0

Profibus DP



B Option

BX

No B option



Reserved for SW

XXXXX

Reserved for SW



D Option

DX

No option



FCD302 Frame Size

MF1

(MF1) MF1



Typecode Part 1



FCD302P2K2T4B66H1X1XMFCFXXXX



Typecode Part 2



A0BXXXXXXDX



Product Catalog

NO_VIEW

NO VIEW



ECCN EU

Y901

Y901



ECCN US

3A999.a

3A999.a



Calculated Gross Weight [kg]



10.1



Calculated Net Weight [kg]



9.8



Vendor

ERR01

Cannot Determine Vendor



Recommended Factory

ERR01

Cannot Determine Vendor



Modelcode01



FCD302P2K2T4B66H1X1XMFCFXXXX



Modelcode02



A0BXXXXXXDX



Recommended Plant

ERR01

ERR01
