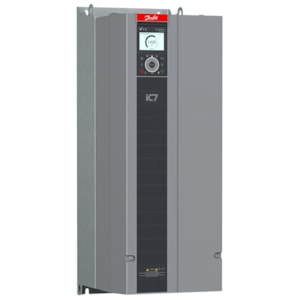

MÁY BIẾN TẦN DANFOSS IC7-60FA3N05-147AE20F3+BAMT+BDBA+BEF1+BF20+DAAU - C/N 137U2490

Gross weight

58.24 Kilogram

Net weight

51.63 Kilogram

Volume

184.738 Liter

EAN

5715253708447

Product series

+DAAU

iC7-Automation

Product group

IC7-60

iC7-60

Product category

FA

Frequency converter,air-cooled

Product type

3N

3~

Mains voltage

05

380-500 V AC

Current rating

-147A

147 A

Power rating

75K

75 kW/100 hp

Protection rating

E20

IP20/Open Type

EMC category

F3

C3 category

Cable entry and EMC plate

+AAST

Standard plate

Integrated brake chopper

+ACXX

None

Extra environmental protection

+AGXX

None

Humidity protection device

+AHXX

None

Integrated common-mode filter

+AIXX

None

Mains input device

+AJXX

None

DC terminals

+ALXX

None

Touch protection

+AMXX

None

Heat sink access panel

+APXX

None

Communication interface, X1/X2

+BAMT

Modbus TCP OS7MT

Communication interface, X0

+BBEL

Ethernet port, no protocol

Standard I/O

+BDBA

4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO

Functional safety

+BEF1

STO, not upgradable

Control panel

+BF20

Control Panel 2.8 OPX20

Interface board

+BISR

MicroSD card reader and RTC

Option slot A

+CAX0

None

Option slot B

+CBXX

None, not upgradable

Option slot C

+CCX0

None

Option slot D

+CDX0

None

Option Slot E

+CEX0

None

Customer specific application

+DBXX

None

Additional drive features 1

+DD1X

None

Additional drive features 2

+DE2X

None

Additional drive features 3

+DF3X

None

Additional drive features 4

+DG4X

None

Additional drive features 5

+DH5X

None

High speed enabled

+DI6X

No

Customization file package ID

+EAXXXXXX

No customization

Product software ID

+ECXXX

Latest released version

Technical documentation

+EGIN

Installation guide

Customer-specific label

+EJXX

None

Language package

+EL01

Global

Product specific marine cert.

+VBXX

None

Frame designation

FA08

FA08

Modelcode01

IC7-60FA3N05-147AE20F3

Modelcode03

+BAMT+BDBA

Modelcode04

+BEF1+BF20

Modelcode05

+DAAU

Input Voltage

3x380-500V

3x380-500V

Input frequency

50/60Hz

50/60Hz

Short circuit current rating

100kA

100kA

Output frequency

0-590Hz

0-590Hz

Typical motor power PL (110%)

75KW(400V)/100HP(460V)

75KW(400V)/100HP(460V)

Continous current IL (1/10min)

147/133A

147/133A

Overload current IL (1/10min)

162/146A

162/146A

Input current LO (1/10 min)

140/122A

140/122A

Ambient temp LO (1/10 min)

45°C/113°F

45°C/113°F

Typical motor power PH (150%)

75KW(400V)/100HP(460V)

75KW(400V)/100HP(460V)

Continous current IH (1/10min)

147/133A

147/133A

Overload current IH (1/10min)

221/200A

221/200A

Input current HO (1/10 min)

140/122A

140/122A

Ambient temp HO (1/10 min)

45°C/113°F

45°C/113°F

Typical motor power PH2 (150%)

55KW(400V)/75HP(460V)

55KW(400V)/75HP(460V)

Continous current IH (1/5min)

106/96A

106/96A

Overload current IH (1/5min)

159/144A

159/144A

Input curent HO2 (1/5 min)

103/90A

103/90A

Ambient temp HO2 (1/5 min)

45°C/113°F

45°C/113°F

Efficiency class-Relative loss

IE2 - 1.56%

IE2 - 1.56%

Maximum Power Loss LO [W]

1682

1682

Main unit Width

255 MM / 10 IN

255 MM / 10 IN

Main unit Height

743 MM / 29.3 IN

743 MM / 29.3 IN

Main unit Depth

368 MM / 14.5 IN

368 MM / 14.5 IN

Calculated Net Weight [kg]

51.63

Calculated Gross Weight [kg]

58.24

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

Ambient temp. normal overload

45°C/113°F

45°C/113°F

Enclosure rating

IP20 / OPEN TYPE

IP20 / OPEN TYPE

Help Counter

1

Input current in Normal Overlo

140/122A

140/122A

Product Catalog

NO_VIEW

NO VIEW

Product View (Switch)

GLBL

Global (Standard)

Typecode Part 1

7FC-AUFA3N05-147AE20F3

Typecode Part 2

-000137261

Vendor

ERR01

Cannot Determine Vendor
