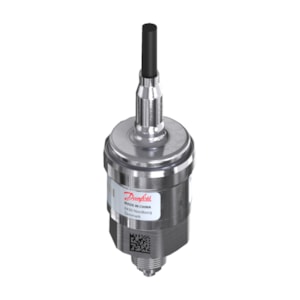

CẢM BIẾN ÁP SUẤT DANFOSS AKS 3000, 0 - 10 bar, 0 - 145 psi - C/N 060G7736

Gross weight

0.264 Kilogram

Net weight

0.227 Kilogram

Volume

1.281 Liter

EAN

5715162907078

Type

AKS 3000

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Brown

- supply

Black

Accuracy, max. [±FS%]

2 %

Accuracy, typical [±FS%]

1 %

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX; CE; C UL US UL Recognized

Approval comments

ATEX Ex ec IIA T4 Gc

Approval standard

6967179; E227388; E31024

Cable length [in]

79 in

Cable length [m]

2 m

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

40 °C

Compensated temp. range [°C] [min]

-30 °C

Compensated temp. range [°F] [max]

104 °F

Compensated temp. range [°F] [min]

-22 °F

Contains batteries

No

Electrical conn. comments

Screened

Electrical connection

Cable

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

International Article Number

5715162907078

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

50 bar

Overload pressure max. [psi]

725 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

EN 837

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

10 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

145 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

442fa760-b631-4ddb-a979-55b604269353

SCIP dossier product name

Sensor AKS 3000

Specification key

AKS 3000-2031-A3AB04-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL evaluated

Yes
