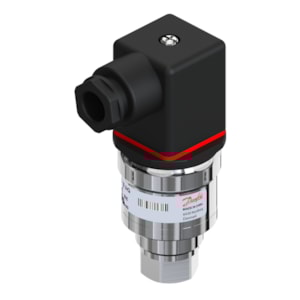

CẢM BIẾN Á SUẤT DANFOSS AKS 3000, -1 - 30 bar, -14.5 - 435 psi - C/N 060G6513

Gross weight

0.142 Kilogram

Net weight

0.125 Kilogram

Volume

0.411 Liter

EAN

5702428949644

Type

AKS 3000

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

100 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

212 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX; GOST POCC; CE; C UL US UL Recognized

Approval comments

ATEX Ex ec IIA T4 Gc

Approval standard

6967179; E227388; E31024

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

212 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5702428949644

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

186 bar

Packing format

Multi pack

Pressure connection HEX [mm]

17 mm

Pressure connection notes

Flare 1/4 in w/ valvedepressor

Pressure connection size

7/16-20

Pressure connection standard

ISO 8434-1

Pressure connection type

UNF

Pressure Male/Female

Female

Pressure range [bar] [max]

30 bar

Pressure range [bar] [min]

-1 bar

Pressure range [psi] [max]

435 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

14 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

442fa760-b631-4ddb-a979-55b604269353

SCIP dossier product name

Sensor AKS 3000

Specification key

AKS 3000-DJ31-A1BF08-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL evaluated

Yes
