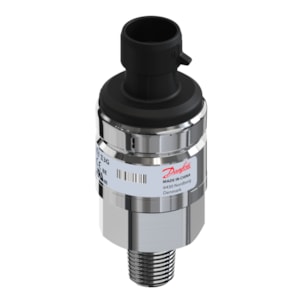

CẢM BIẾN ÁP SUẤT DANFOSS AKS 2050, 0- 160bar, 0 - 2320psi - C/N 060G6835

Gross weight

0.137 Kilogram

Net weight

0.121 Kilogram

Volume

0.246 Liter

EAN

5702424053697

Type

AKS 2050

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 3

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

50 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

122 °F

Ambient temperature range [°F] [min]

-22 °F

Approval standard

E227388‘ E31024

Autofrettage Pressure

500 bar

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

50 °C

Compensated temp. range [°C] [min]

-30 °C

Compensated temp. range [°F] [max]

122 °F

Compensated temp. range [°F] [min]

-22 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

Round Packard Metri-Pack

Electrical connection size

3 pin

Electrical connection standard

150.2 SERIES

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

98

In scope of WEEE

Yes

International Article Number

5702424053697

Intrinsically safe

No

Low Clipping level

4

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Ratio metric

Overload pressure max. [bar]

1200 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4-18

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [max]

160 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

2320 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

Yes

Quantity per packing format

20 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

AKS 2050-3236-C2AC04-0

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

4.5 V

UL evaluated

Yes
