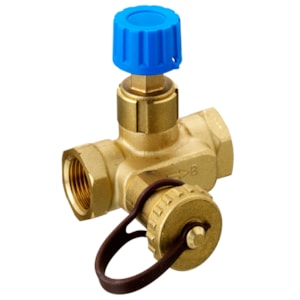

VAN CÂN BẰNG LƯU LƯỢNG DANFOSS USV-M, DN 50, Ren trong - C/N 003Z2153

Gross weight

2.194 Kilogram

Net weight

2.194 Kilogram

Volume

2.466 Liter

EAN

5702420082547

Type

USV-M

Product group

Manual balancing

China RoHS compliance

Out of scope

Connection types

Internal thread

Contains batteries

No

Description

USV-M DN 50, internal thread, upgradable balancing valve

Differential pressure over the valve [kPa] [Max]

80 KPa

Drain function

Yes

EU RoHS compliance

Out of scope

Flow limitation

Yes

Kvs values [m³/h]

16 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-20 °C

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

842ea672-77b3-411d-a9bc-5547faac3310

SCIP dossier product name

USV-M 50, R 2"", PN16

Setting scale

No

Shut-off function

Yes

Upgradeability

Yes

Valve body material

Brass

Valve size

DN 50
