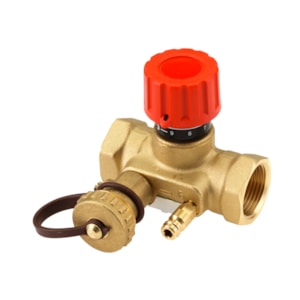

VAN CÂN BẰNG LƯU LƯỢNG DANFOSS USV-I, DN 50, Ren trong - C/N 003Z2151

Gross weight

2.19 Kilogram

Net weight

2.14 Kilogram

Volume

2.429 Liter

EAN

5702420082523

Type

USV-I

Product group

Manual balancing

China RoHS compliance

Out of scope

Connection types

Internal thread

Contains batteries

No

Description

USV-I DN 50, internal thread, adjustment valve

Differential pressure over the valve [kPa] [Max]

150 KPa

Drain function

Yes

EU RoHS compliance

Out of scope

Flow limitation

Yes

Kvs values [m³/h]

16 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-20 °C

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

82cb7846-7721-4b99-bf19-f3e32ff5abe5

SCIP dossier product name

USV-I 50, R 2"", PN16

Setting scale

Yes

Shut-off function

Yes

Valve body material

Brass

Valve size

DN 50
