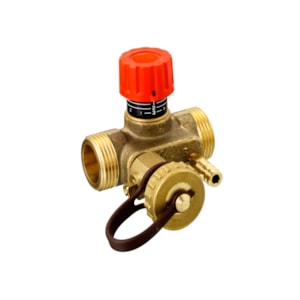

VAN CÂN BẰNG LƯU LƯỢNG DANFOSS USV-I, DN 25, Ren ngoài- C/N 003Z2138

Gross weight

0.76 Kilogram

Net weight

0.76 Kilogram

Volume

1.077 Liter

EAN

5702420083582

Type

USV-I

Product group

Manual balancing

China RoHS compliance

Out of scope

Connection types

External Thread

Contains batteries

No

Description

USV-I DN 25, external thread, adjustment valve

Differential pressure over the valve [kPa] [Max]

150 KPa

Drain function

Yes

EU RoHS compliance

Out of scope

Flow limitation

Yes

Kvs values [m³/h]

4 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-20 °C

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

6197f9a6-5e31-46ef-aec3-84760763b003

SCIP dossier product name

USV-I 25, G 1 1/4, PN16

Setting scale

Yes

Shut-off function

Yes

Valve body material

Brass

Valve size

DN 25
