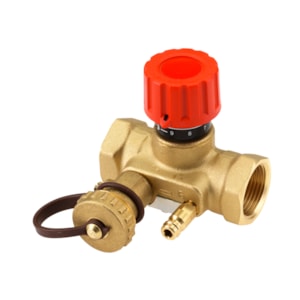

VAN CÂN BẰNG LƯU LƯỢNG DANFOSS USV-I, DN 25, Ren trong - C/N 003Z2133

Gross weight

0.73 Kilogram

Net weight

0.69 Kilogram

Volume

1.077 Liter

EAN

5702420082493

Type

USV-I

Product group

Manual balancing

China RoHS compliance

Out of scope

Connection types

Internal thread

Contains batteries

No

Description

USV-I DN 25, internal thread, adjustment valve

Differential pressure over the valve [kPa] [Max]

150 KPa

Drain function

Yes

EU RoHS compliance

Out of scope

Flow limitation

Yes

Kvs values [m³/h]

4 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-20 °C

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Setting scale

Yes

Shut-off function

Yes

Valve body material

Brass

Valve size

DN 25
