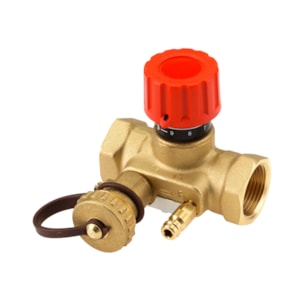

VAN CÂN BẰNG LƯU LƯỢNG DANFOSS USV-I, DN 20, Ren trong - C/N 003Z2132

Gross weight

0.454 Kilogram

Net weight

0.42 Kilogram

Volume

0.689 Liter

EAN

5702420055701

Type

USV-I

Product group

Manual balancing

China RoHS compliance

Out of scope

Connection types

Internal thread

Contains batteries

No

Description

USV-I DN 20, internal thread, adjustment valve

Differential pressure over the valve [kPa] [Max]

150 KPa

Drain function

Yes

EU RoHS compliance

Out of scope

Flow limitation

Yes

Kvs values [m³/h]

2.5 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-20 °C

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Setting scale

Yes

Shut-off function

Yes

Valve body material

Brass

Valve size

DN 20
