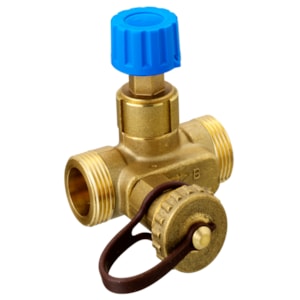

VAN CÂN BẰNG LƯU LƯỢNG DANFOSS USV-M, DN 20, Ren ngoài - C/N 003Z2127

Gross weight

0.549 Kilogram

Net weight

0.549 Kilogram

Volume

0.672 Liter

EAN

5702420083520

Type

USV-M

Product group

Manual balancing

China RoHS compliance

Out of scope

Connection types

External Thread

Contains batteries

No

Description

USV-M DN 20, external thread, upgradable balancing valve

Differential pressure over the valve [kPa] [Max]

80 KPa

Drain function

Yes

EU RoHS compliance

Out of scope

Flow limitation

Yes

Kvs values [m³/h]

2.5 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-20 °C

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Setting scale

No

Shut-off function

Yes

Upgradeability

Yes

Valve body material

Brass

Valve size

DN 20
