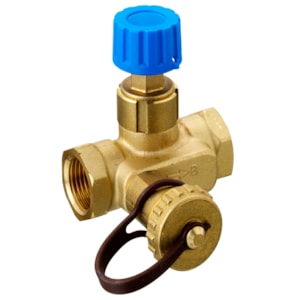

VAN CÂN BẰNG LƯ LƯỢNG DANFOSS USV-M, DN 15, Ren trong - C/N 003Z2121

Gross weight

0.38 Kilogram

Net weight

0.38 Kilogram

Volume

0.477 Liter

EAN

5702420082394

Type

USV-M

Product group

Manual balancing

China RoHS compliance

Out of scope

Connection types

Internal thread

Contains batteries

No

Description

USV-M DN 15, internal thread, upgradable balancing valve

Differential pressure over the valve [kPa] [Max]

80 KPa

Drain function

Yes

EU RoHS compliance

Out of scope

Flow limitation

Yes

Kvs values [m³/h]

1.6 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-20 °C

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Setting scale

No

Shut-off function

Yes

Upgradeability

Yes

Valve body material

Brass

Valve size

DN 15
