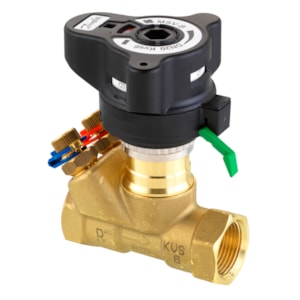

VAN CÂN BẰNG LƯU LƯỢNG DANFOSS LENO MSV-B, DN 20, Ren trong - C/N 003Z4032

Gross weight

0.784 Kilogram

Net weight

0.724 Kilogram

Volume

1.434 Liter

EAN

5702420096445

Type

LENO MSV-B

Product group

Manual balancing

China RoHS compliance

Out of scope

Connection types

Internal thread

Connections

Rp ¾

Contains batteries

No

Description

MSV-B DN 20, Internal thread, manual balancing valve

Drain function

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Kvs values [m³/h]

6 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-20 °C

Pressure class

PN 20

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

e31a4e1f-b706-4ff7-acc3-f3e2d361ce7e

SCIP dossier product name

MSV-B DN15-DN50 (1)

Setting scale

Yes

Shut-off function

Yes

Test plugs

With test plugs

Valve body material

DZR brass

Valve size

DN 20
