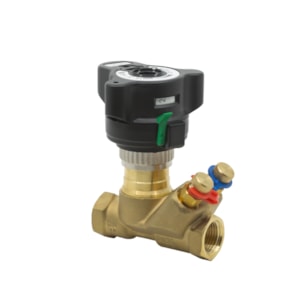

VAN CÂN BẰNG LƯU LƯỢNG THẤP DANFOSS LENO MSV-O, DN 15, Ren trong - C/N 003Z4020

Gross weight

0.79 Kilogram

Net weight

0.726 Kilogram

Volume

2.138 Liter

EAN

5702420096629

Type

LENO MSV-O

Product group

Manual balancing

China RoHS compliance

Out of scope

Connection types

Internal thread

Connections

Rp ½

Contains batteries

No

Description

MSV-O DN 15 Low flow, Internal thread, fixed venturi orifice, manual balancing valve

Differential pressure range [bar] [Max]

2.5 bar

Drain function

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow type

Low flow

Kvs values [m³/h]

0.63 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-20 °C

Pressure class

PN 20

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

53f95648-cebd-47cc-b3d7-13f198654fa0

SCIP dossier product name

MSV-O DN15-DN50

Setting scale

Yes

Shut-off function

Yes

Test plugs

With test plugs

Valve body material

DZR brass

Valve size

DN 15
