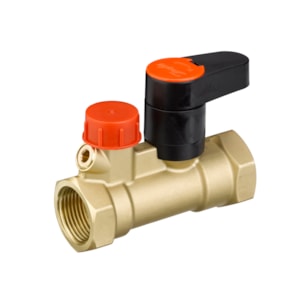

VAN CÂN BẰNG LƯU LƯỢNG DANFOSS LENO MSV-S, DN 20, Ren trong - C/N 003Z4012

Gross weight

0.496 Kilogram

Net weight

0.45 Kilogram

Volume

0.683 Liter

EAN

5702420091891

Type

LENO MSV-S

Product group

Manual balancing

China RoHS compliance

Out of scope

Connection types

Internal thread

Connections

Rp ¾

Contains batteries

No

Description

MSV-S DN 20, Internal thread, partner valve

Drain function

Yes

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Kvs values [m³/h]

6 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-20 °C

Pressure class

PN 20

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

257a84e0-d23a-4a7d-ac65-ff030e7f52f0

SCIP dossier product name

MSV-S DN15-DN50

Setting scale

No

Shut-off function

Yes

Test plugs

Without test plugs

Valve body material

DZR brass

Valve size

DN 20
