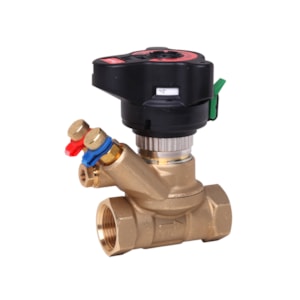

VAN DANFOSS ASV-BD PURE, DN 15, Ren trong - C/N 003Z4941

Gross weight

0.818 Kilogram

Net weight

0.806 Kilogram

Volume

2.189 Liter

EAN

5715162508756

Type

ASV-BD PURE

China RoHS compliance

Out of scope

Connection types

Internal thread

Contains batteries

No

Description

ASV-BD, DN 15, Internal thread

Differential pressure over the valve [kPa] [Min]

10 KPa

Drain function

Optional via accessory

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Flow limitation

Yes

Kvs values [m³/h]

3 m³/h

Lead content

less than 0,1%

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-20 °C

Mounting position

Supply pipe

Pressure class

PN 20

REACH Candidate List substances

No

Setting scale

Yes

Shut-off function

Yes

Valve size

DN 15
