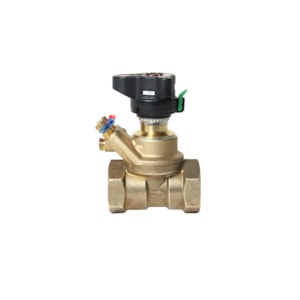

VAN DANFOSS ASV-BD, DN 40, Ren trong - C/N 003Z4045

Gross weight

1.95 Kilogram

Net weight

1.82 Kilogram

Volume

5.187 Liter

EAN

5702420114804

Type

ASV-BD

China RoHS compliance

Out of scope

Connection types

Internal thread

Contains batteries

No

Description

ASV-BD DN 40, Internal thread, shut-off valve

Differential pressure over the valve [kPa] [Min]

10 KPa

Drain function

Optional via accessory

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow limitation

Yes

Kvs values [m³/h]

26 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-20 °C

Mounting position

Supply pipe

Pressure class

PN 20

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

714d857a-c2dc-49c1-8985-18c8bb0d1890

SCIP dossier product name

"ASV-BD"

Setting scale

Yes

Shut-off function

Yes

Valve body material

DZR brass

Valve size

DN 40
