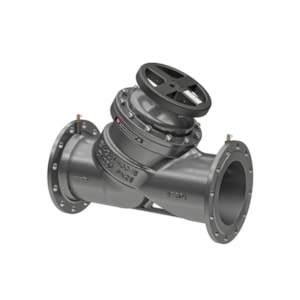

VAN DANFOSS MSV-F2, DN 350, PN 25, Mặt bích - C/N 003Z1148

Gross weight

450 Kilogram

Net weight

374 Kilogram

Volume

1254.888 Liter

EAN

5715162497418

Type

MSV-F2

Product group

Manual balancing

China RoHS compliance

Out of scope

Connection types

Flange

Contains batteries

No

Description

MSV-F2 DN 350 with test plugs PN25, manual balancing valve

Drain function

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Kvs values [m³/h]

2359 m³/h

Media temperature [°C] [Max]

150 °C

Media temperature [°C] [Min]

-10 °C

Pressure class

PN 25

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

b53622cd-50a2-4626-a23a-856f12c6983e

SCIP dossier product name

MSV-F2 MNF DN15-300

Setting scale

Yes

Shut-off function

Yes

Test plugs

Yes

Valve body material

Ductile iron (EN-GJS 400-15)

Valve size

DN 350
