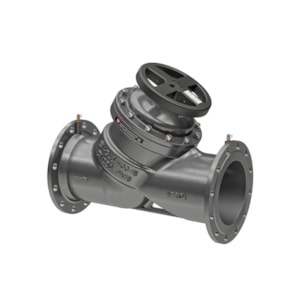

VAN DANFOSS MSV-F2, DN 400, PN 16, Mặt bích - C/N 003Z1144

Gross weight

578 Kilogram

Net weight

460 Kilogram

Volume

1254.888 Liter

EAN

5710104523453

Type

MSV-F2

Product group

Manual balancing

China RoHS compliance

Out of scope

Connection types

Flange

Contains batteries

No

Description

MSV-F2 DN 400 with test plugs PN16, manual balancing valve

Drain function

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Kvs values [m³/h]

3516 m³/h

Kvs values [m³/h] [Max]

3500 m³/h

Media temperature [°C] [Max]

130 °C

Media temperature [°C] [Min]

-10 °C

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

2bc00472-4969-4f4a-bfc8-1c168f67534a

SCIP dossier product name

MSV-F2 DN200-DN400

Setting scale

Yes

Shut-off function

Yes

Test plugs

Yes

Valve body material

Cast iron

Valve size

DN 400
