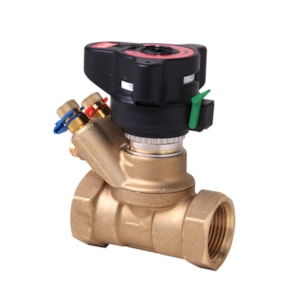

VAN DANFOSS ASV-BD PURE, DN 25, Ren trong - C/N 003Z4943

Gross weight

1.042 Kilogram

Net weight

1.026 Kilogram

Volume

2.261 Liter

EAN

5715162508770

Type

ASV-BD PURE

China RoHS compliance

Out of scope

Connection types

Internal thread

Contains batteries

No

Description

ASV-BD, DN 25, Internal thread

Differential pressure over the valve [kPa] [Min]

10 KPa

Drain function

Optional via accessory

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Flow limitation

Yes

Kvs values [m³/h]

9.5 m³/h

Lead content

less than 0,1%

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-20 °C

Mounting position

Supply pipe

Pressure class

PN 20

REACH Candidate List substances

No

Setting scale

Yes

Shut-off function

Yes

Valve size

DN 25
