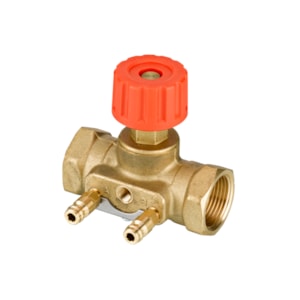

VAN DANFOSS ASV-M, DN 40, Ren trong - C/N 003L7685

Gross weight

1.504 Kilogram

Net weight

1.504 Kilogram

Volume

8.316 Liter

EAN

5702421528051

Type

ASV-M

China RoHS compliance

Out of scope

Connection types

Internal thread

Contains batteries

No

Description

ASV-M DN 40, internal thread, shut-off valve

Differential pressure over the valve [kPa] [Max]

150 KPa

Drain function

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow limitation

Yes

Kvs values [m³/h]

10 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-20 °C

Mounting position

Supply pipe

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

4567dfbb-3fcc-4ed0-933d-1de3340929b3

SCIP dossier product name

"ASV-I/M"

Setting scale

No

Shut-off function

Yes

Valve body material

Brass

Valve size

DN 40
