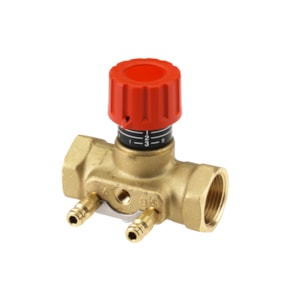

VAN DANFOSS ASV-I, DN 25, Ren trong - C/N 003L7643

Gross weight

0.84 Kilogram

Net weight

0.646 Kilogram

Volume

5.299 Liter

EAN

5702421527931

Type

ASV-I

China RoHS compliance

Out of scope

Connection types

Internal thread

Contains batteries

No

Description

ASV-I DN 25, internal thread, adjustment valve

Differential pressure over the valve [kPa] [Max]

150 KPa

Drain function

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow limitation

Yes

Kvs values [m³/h]

4 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-20 °C

Mounting position

Supply pipe

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

4567dfbb-3fcc-4ed0-933d-1de3340929b3

SCIP dossier product name

"ASV-I/M"

Setting scale

Yes

Shut-off function

Yes

Valve body material

Brass

Valve size

DN 25
