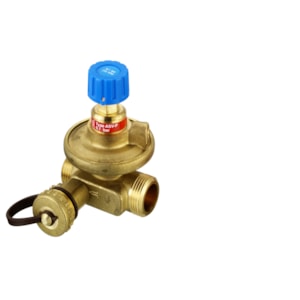

VAN DANFOSS ASV-P, DN 40, REN NGOÀI - C/N 003L7630

Gross weight

3.458 Kilogram

Net weight

3.458 Kilogram

Volume

8.316 Liter

EAN

5702421527900

Type

ASV-P

China RoHS compliance

Out of scope

Connection types

External Thread

Contains batteries

No

Description

ASV-P DN 40, external thread, automatic balancing valve

Differential pressure over the valve [kPa] [Max]

150 KPa

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Factory setting [kPa]

10 KPa

Flow limitation

No

Kvs values [m³/h]

10 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-20 °C

Mounting position

Return pipe

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

214f4c34-0448-42c5-b938-a399a391c031

SCIP dossier product name

"ASV-P DN15-40"

Setting scale

No

Shut-off function

Yes

Valve body material

Brass

Valve size

DN 40
