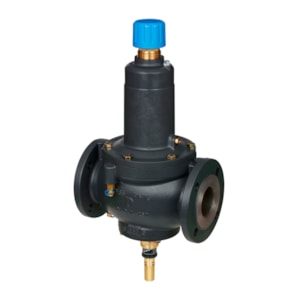

VAN DANFOSS AB-PM, DN 100, MẶT BÍCH - C/N 003Z1440

Gross weight

74.5 Kilogram

Net weight

74 Kilogram

Volume

201.6 Liter

EAN

5710104096438

Type

AB-PM

Actuator connection

Danfoss standard

China RoHS compliance

Out of scope

Connection types

Flange

Contains batteries

No

Description

AB-PM DN 100, combined automatic balancing valve

Differential pressure [kPa] [Min]

60 KPa

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Impulse tube length [m]

2.5 m

Kvs values [m³/h]

0 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-10 °C

Mounting position

Return pipe

Pressure class

PN 16

Qnom factory setting (Δpr 25 kPa)

21000 L/h

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Valve body material

Grey cast iron EN-GJL-250 (GG-25)

Valve size

DN 100
