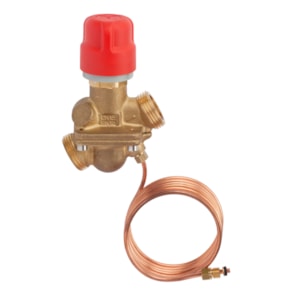

AB-PM, DN 25, REN NGOÀI - C/N 003Z1404

Gross weight

1.418 Kilogram

Net weight

1.338 Kilogram

Volume

1.562 Liter

EAN

5710104034812

Type

AB-PM

Actuator connection

M30 x 1.5

China RoHS compliance

Out of scope

Connection types

External Thread

Contains batteries

No

Description

AB-PM DN 25, without test plugs, combined automatic balancing valve

Differential pressure [kPa] [Max]

400 KPa

Differential pressure [kPa] [Min]

18 KPa

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow max at dp=10kpa [m3/h]

1.2 m³/h

Impulse tube length [m]

1.5 m

Kvs values [m³/h]

0 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-10 °C

Mounting position

Supply pipe

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

51867d79-4bd8-49ae-bb46-2c69a351a29b

SCIP dossier product name

AB-PM DN25 without test plugs

Valve body material

DZR brass CuZn36Pb2AS (CW 602N)

Valve size

DN 25
