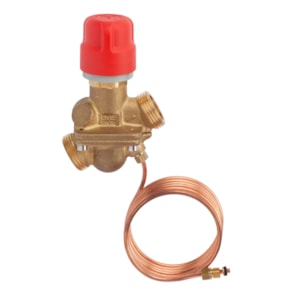

AB-PM, DN 10, REN NGOÀI - C/N 003Z1401

Gross weight

0.512 Kilogram

Net weight

0.49 Kilogram

Volume

1.378 Liter

EAN

5710104083681

Type

AB-PM

Actuator connection

M30 x 1.5

China RoHS compliance

Out of scope

Connection types

External Thread

Contains batteries

No

Description

AB-PM DN 10, without test plugs, combined automatic balancing valve

Differential pressure [kPa] [Max]

400 KPa

Differential pressure [kPa] [Min]

18 KPa

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow max at dp=10kpa [m3/h]

0.1 m³/h

Impulse tube length [m]

1.5 m

Kvs values [m³/h]

0 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-10 °C

Mounting position

Supply pipe

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

1878d93f-eab3-4ddd-a3dd-44a9a947b529

SCIP dossier product name

AB-PM DN10-32

Valve body material

DZR brass CuZn36Pb2AS (CW 602N)

Valve size

DN 10
