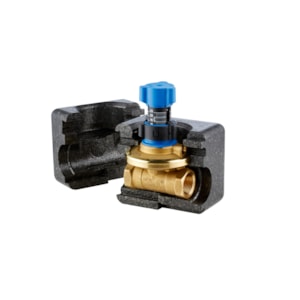

VAN DANFOSS ASV-PV 4G PURE, DN 25, 5 KPa - 25 KPa - C/N 003Z5623

Gross weight

1.448 Kilogram

Net weight

1.093 Kilogram

Volume

3.398 Liter

EAN

5715162499528

Type

ASV-PV 4G PURE

China RoHS compliance

Out of scope

Connection types

Internal thread

Contains batteries

No

Description

ASV-PV PURE DN25 5-25 kPa

Differential pressure over the valve [kPa] [Max]

250 KPa

Differential pressure setting [kPa] [Max]

25 KPa

Differential pressure setting [kPa] [Min]

5 KPa

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Factory setting [kPa]

10 KPa

Impulse tube length [m]

1.5 m

Insulation

With insulation

Kvs values [m³/h]

4 m³/h

Lead content

less than 0,1%

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

0 °C

Mounting position

Return pipe

Pressure class

PN 16

REACH Candidate List substances

No

Shut-off function

Yes

Valve size

DN 25
