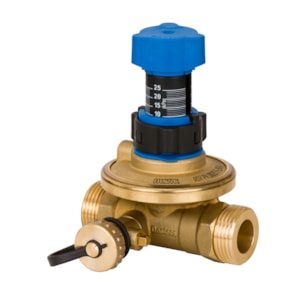

VAN DANFOSS ASV-PV 4G, DN 15, 20 KPa - 60 KPa - C/N 003Z5551

Gross weight

0.978 Kilogram

Net weight

0.843 Kilogram

Volume

2.284 Liter

EAN

5710104086262

Type

ASV-PV 4G

China RoHS compliance

Out of scope

Connection types

External Thread

Contains batteries

No

Description

ASV-PV DN 15, 20-60 kPa, External thread, without insulation, automatic balancing valve

Differential pressure over the valve [kPa] [Max]

250 KPa

Differential pressure setting [kPa] [Max]

60 KPa

Differential pressure setting [kPa] [Min]

20 KPa

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Factory setting [kPa]

30 KPa

Impulse tube length [m]

1.5 m

Insulation

Without insulation

Kvs values [m³/h]

1.6 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

0 °C

Mounting position

Return pipe

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

4f955b0e-1f38-4945-8238-1c1c60373eeb

SCIP dossier product name

"ASV-PV DN 15 - 50"

Shut-off function

Yes

Valve body material

Brass

Valve size

DN 15
