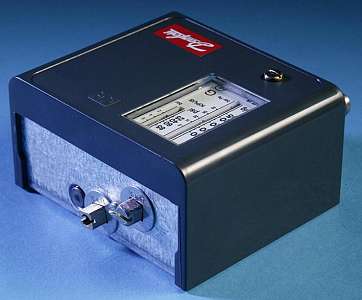

CÔNG TẮC ÁP LỰC 060-5233 KPU1

Mã sản phẩm: 060-5233
Thương hiệu: Danfoss
Giá bán: 500.000 đ
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: bansibientan@yahoo.com.vn

KPU pressure control, low pressure

Code number selector



Code no.

Type

Press. conn.

Reg. range
[bar] Pe

Diff. [bar]

Contact
function

Reset

Encl.

060-133266

KP1

Solder, ODF 6 mm

-0,20 - 7,50 bar

0,70 - 4,00 bar

SPDT

Auto

IP30

060-5231

KPU1

Flare 1/4

-0,20 - 7,50 bar

0,70 - 4,00 bar

SPDT

Auto

IP30

060-5232

KPU1B

Flare 1/4

-0,90 - 7,00 bar

0,70 bar

SPDT

Min

IP30

060-5233

KPU1

Flare nut 1/4

-0,20 - 7,50 bar

0,70 - 4,00 bar

SPDT

Auto

IP30

060-5234

KPU1B

Flare nut 1/4

-0,90 - 7,00 bar

0,70 bar

SPDT

Min

IP30

060-5235

KPU2

Flare nut 1/4

-0,20 - 5,00 bar

0,40 - 1,50 bar

SPST(NO)

Auto

IP30

060-5236

KPU1

Flare 1/4

-0,20 - 7,50 bar

0,70 - 4,00 bar

SPST(NO)

Auto

IP30

060-5237

KPU2

Flare 1/4

-0,20 - 5,00 bar

0,40 - 1,50 bar

SPST(NO)

Auto

IP30

060-5239

KPU2

Flare 1/4

-0,20 - 5,00 bar

0,40 - 1,50 bar

SPDT

Auto

IP30

060-5240

KPU2

Flare nut 1/4

-0,20 - 5,00 bar

0,40 - 1,50 bar

SPDT

Auto

IP30

060-5602

KPU2

Flare 1/4

-0,20 - 5,00 bar

0,40 - 1,50 bar

SPDT

Auto

IP30

060-5613

KPU1

Flare 1/4

-0,20 - 7,50 bar

0,70 - 4,00 bar

SPDT

Auto

IP30

060-5614

KPU15

Flare nut 1/4

-

-

SPST(NO+NC)

-

IP30

060-5615

KPU1

Flare nut 1/4

-0,20 - 7,50 bar

0,70 - 4,00 bar

SPDT

Auto

IP30



Code number selector

Type  KP1  KPU1  KPU1B  KPU2  KPU15

Code no.  060-133266  060-5231  060-5232  060-5233  060-5234  060-5235  060-5236  060-5237  060-5239  060-5240  060-5602  060-5613  060-5614  060-5615

KPU pressure control, low pressure




KPU pressure controls are for use on commercial refrigeration and air conditioning systems to give protection against excessively low suction pressure or excessively high discharge pressure.
They are also used for starting and stopping refrigeration compressors and fans on air-cooled condensers.

KPU pressure controls are fitted with the Single-Pole Single-Throw (SPST) or Single-Pole Double-Throw (SPDT) switches, suitable for direct as well as indirect (with a contactor) control. KPU pressure controls are available in several pressure ranges and are compatible with non-aggressive, fluorinated refrigerants.
Standard enclosure is NEMA1.

Code number selector

Type  KP1  KPU1  KPU1B  KPU2  KPU15

Code no.  060-133266  060-5231  060-5232  060-5233  060-5234  060-5235  060-5236  060-5237  060-5239  060-5240  060-5602  060-5613  060-5614  060-5615
