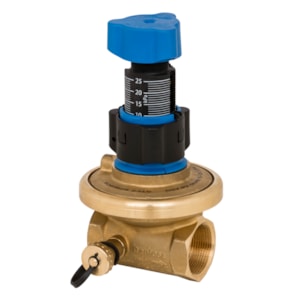

VAN DANFOSS ASV-PV 4G, DN 40, 5 KPa - 25 KPa - C/N 003Z5505

Gross weight

3.724 Kilogram

Net weight

3.422 Kilogram

Volume

9.622 Liter

EAN

5710104081588

Type

ASV-PV 4G

China RoHS compliance

Out of scope

Connection types

Internal thread

Contains batteries

No

Description

ASV-PV DN 40, 5-25 kPa, internal thread, without insulation, automatic balancing valve

Differential pressure over the valve [kPa] [Max]

250 KPa

Differential pressure setting [kPa] [Max]

25 KPa

Differential pressure setting [kPa] [Min]

5 KPa

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Factory setting [kPa]

10 KPa

Impulse tube length [m]

1.5 m

Insulation

Without insulation

Kvs values [m³/h]

10 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

0 °C

Mounting position

Return pipe

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

4f955b0e-1f38-4945-8238-1c1c60373eeb

SCIP dossier product name

"ASV-PV DN 15 - 50"

Shut-off function

Yes

Valve body material

Brass

Valve size

DN 40
