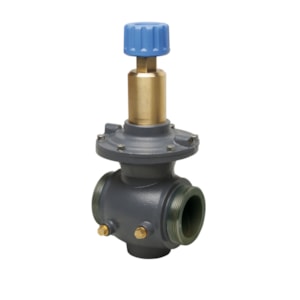

VAN DANFOSS ASV-PV 3G, DN 100, 35 KPa - 75 KPa, Flange - C/N 003Z0635

Gross weight

63 Kilogram

Net weight

63 Kilogram

Volume

92.4 Liter

EAN

5702421558621

Type

ASV-PV 3G

Product group

Automatic balancing

China RoHS compliance

Out of scope

Connection types

Flange

Contains batteries

No

Description

ASV-PV DN 100, 35-75 kPa, automatic balancing valve

Differential pressure over the valve [kPa] [Max]

250 KPa

Differential pressure setting [kPa] [Max]

75 KPa

Differential pressure setting [kPa] [Min]

35 KPa

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Factory setting [kPa]

60 KPa

Impulse tube length [m]

2.5 m

Kvs values [m³/h]

76 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-10 °C

Mounting position

Return pipe

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

844846e2-e4e6-4453-80a4-8fc4b645ca9a

SCIP dossier product name

"ASV-PV Dn 65-100 1"

Shut-off function

Yes

Valve body material

Grey cast iron (EN-GJL-250)

Valve size

DN 100
