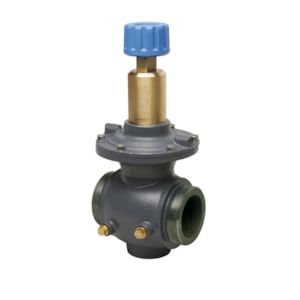

VAN DANFOSS ASV-PV 3G, DN 50, 20 KPa - 40 KPa - C/N 003Z0621

Gross weight

7.232 Kilogram

Net weight

6.375 Kilogram

Volume

18.546 Liter

EAN

5702421558416

Type

ASV-PV 3G

Product group

Automatic balancing

China RoHS compliance

Out of scope

Connection types

External Thread

Contains batteries

No

Description

ASV-PV DN 50, 20-40 kPa, external thread, automatic balancing valve

Differential pressure over the valve [kPa] [Max]

250 KPa

Differential pressure setting [kPa] [Max]

40 KPa

Differential pressure setting [kPa] [Min]

20 KPa

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Factory setting [kPa]

30 KPa

Impulse tube length [m]

2.5 m

Kvs values [m³/h]

20 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-10 °C

Mounting position

Return pipe

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Shut-off function

Yes

Valve body material

Grey cast iron (EN-GJL-250)

Valve size

DN 50
