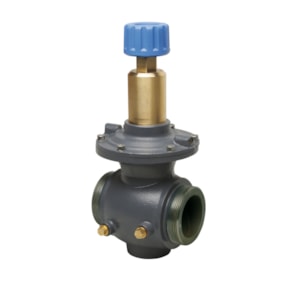

VAN DANFOSS ASV-PV 3G, DN 50, 5 KPa - 25 KPa - C/N 003Z0611

Gross weight

7.28 Kilogram

Net weight

6.51 Kilogram

Volume

12.167 Liter

EAN

5702421558409

Type

ASV-PV 3G

Product group

Automatic balancing

China RoHS compliance

Out of scope

Connection types

External Thread

Contains batteries

No

Description

ASV-PV DN 50, 5-25 kPa, external thread, automatic balancing valve

Differential pressure over the valve [kPa] [Max]

250 KPa

Differential pressure setting [kPa] [Max]

25 KPa

Differential pressure setting [kPa] [Min]

5 KPa

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Factory setting [kPa]

10 KPa

Impulse tube length [m]

2.5 m

Kvs values [m³/h]

20 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-10 °C

Mounting position

Return pipe

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Shut-off function

Yes

Valve body material

Grey cast iron (EN-GJL-250)

Valve size

DN 50
