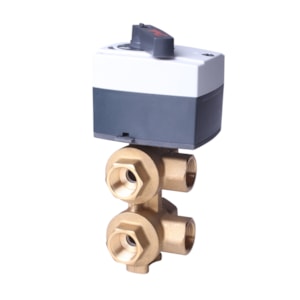

VAN DANFOSS ChangeOver6 valve, DN 20 - C/N 003Z3151

Gross weight

1.854 Kilogram

Net weight

1.75 Kilogram

Volume

1.386 Liter

EAN

5702428960212

Type

ChangeOver6 valve

Product group

Other valves

Actuator connection

Quick fix connection

China RoHS compliance

Out of scope

Connection types

Internal thread

Contains batteries

No

Description

ChangeOver6 DN 20, motorized 6-port ball valve

EPD available

Yes

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

For valve size

DN 20

Kvs values [m³/h]

4 m³/h

Label product

Yes

Media temperature [°C] [Max]

90 °C

Media temperature [°C] [Min]

0 °C

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

d1cc861f-3685-4955-b9ef-2f9cb2c117ec

SCIP dossier product name

003Z3151

Shut off pressure [kPa] [Max]

801 KPa

Shut-off function

Yes

Valve body material

DZR Brass (CW 602N)
