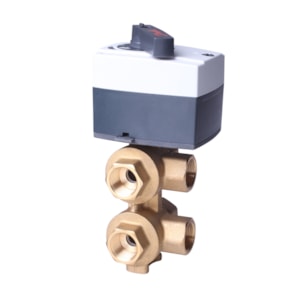

VAN DANFOSS ChangeOver6 valve, DN15 - C/N 003Z3150

Gross weight

1.166 Kilogram

Net weight

1.15 Kilogram

Volume

0.819 Liter

EAN

5702428926140

Type

ChangeOver6 valve

Product group

Other valves

Actuator connection

Quick fix connection

China RoHS compliance

Out of scope

Connection types

Internal thread

Contains batteries

No

Description

ChangeOver6 DN 15, motorized 6-port ball valve

EPD available

Yes

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

For valve size

DN15

Kvs values [m³/h]

2.4 m³/h

Label product

Yes

Media temperature [°C] [Max]

90 °C

Media temperature [°C] [Min]

0 °C

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

d1cc861f-3685-4955-b9ef-2f9cb2c117ec

SCIP dossier product name

003Z3150

Shut off pressure [kPa] [Max]

800 KPa

Shut-off function

Yes

Valve body material

DZR Brass (CW 602N)
